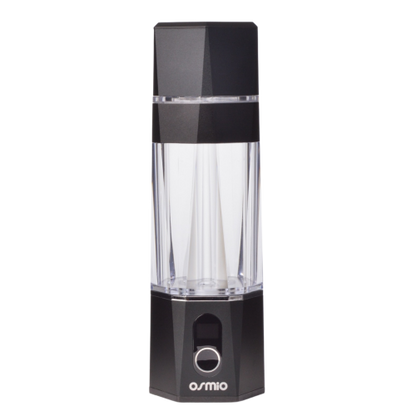

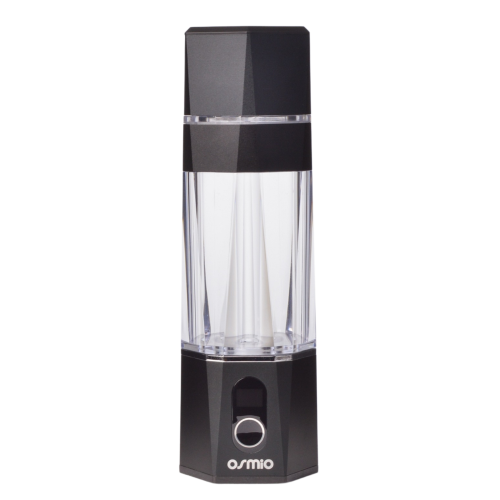

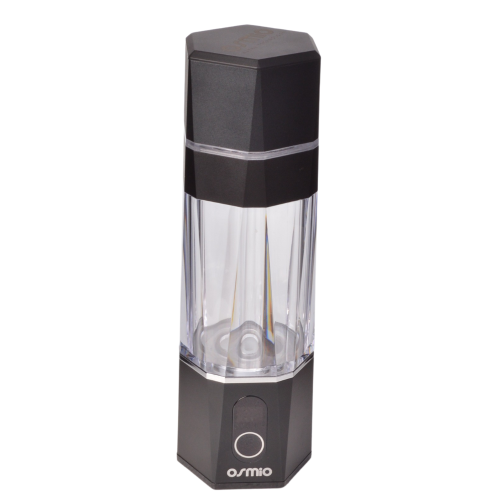

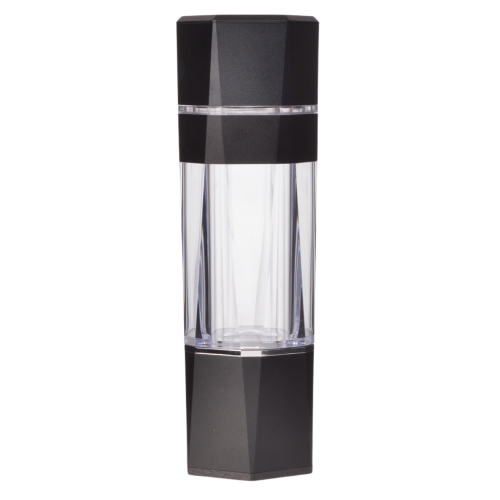

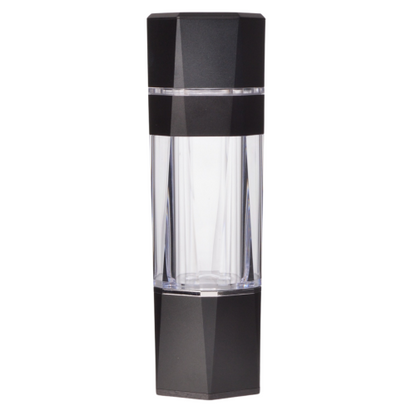

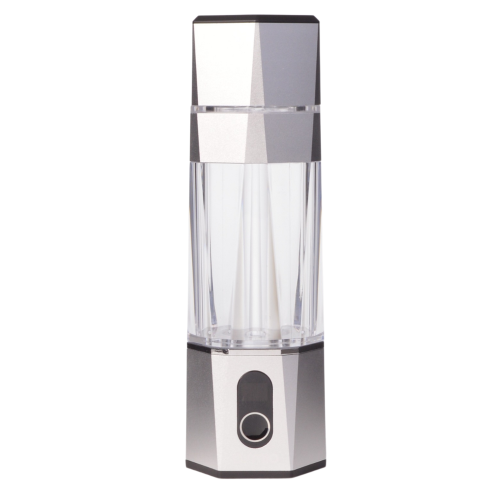

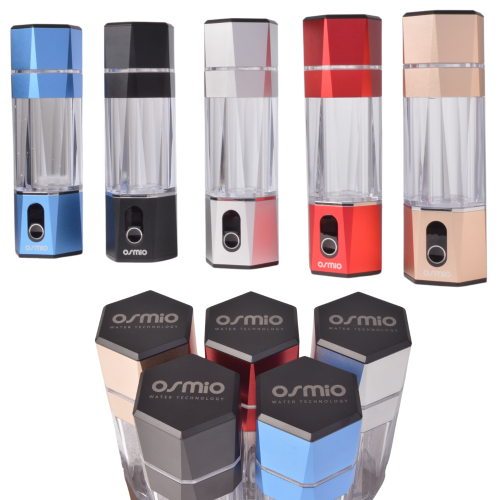

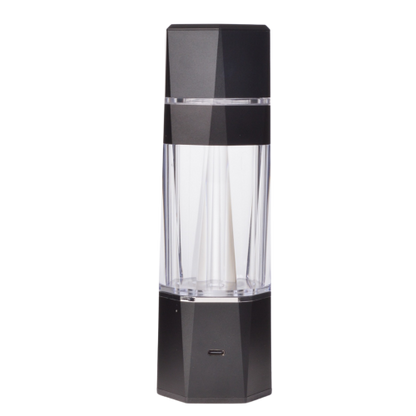

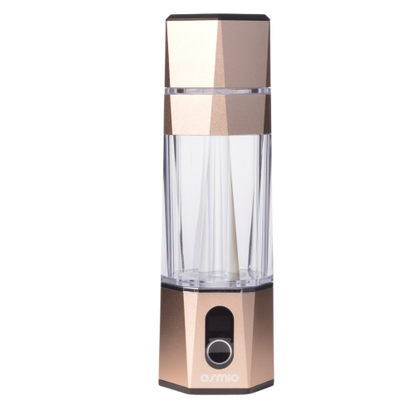

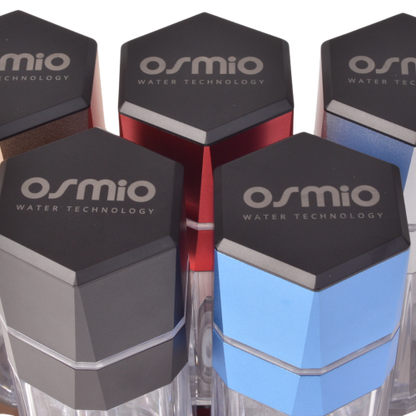

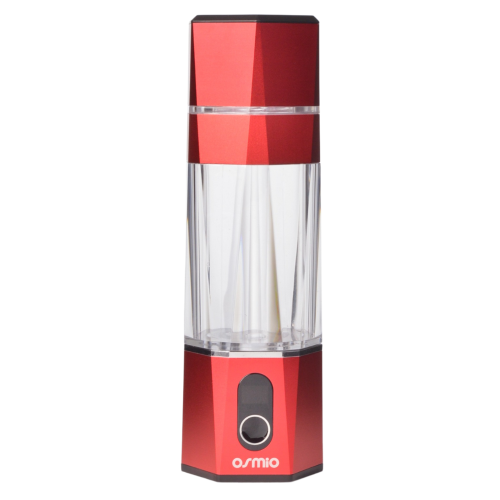

Osmio H2Xagen Hydrogen Water Bottle 210ml

✔ Best in class with Up to 3.5+ mg/l (3.5+ ppm) H2 content.
✔ New 2024 software for battery overcharge and voltage management
✔ Any water can be used. (RO, tap, distilled, filtered, mineral)

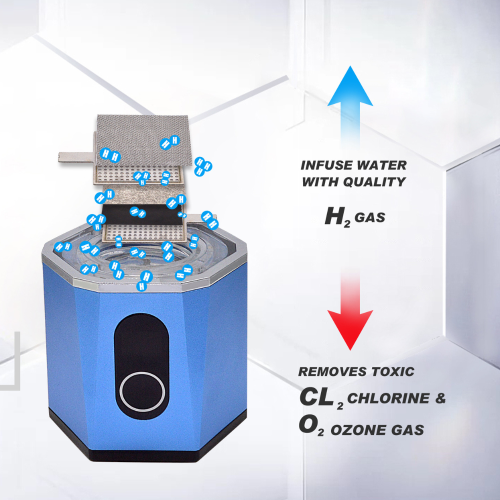

✔ Puts only pure Hydrogen into the water. Oxygen, chlorine, and ozone are separated through a port at the bottom of the base.
✔ One touch operation, smart and easy to use.
✔ Quickly produces hydrogen-rich water within 5 minutes with no wastewater being produced at the bottom, and can be drank directly from this bottle.

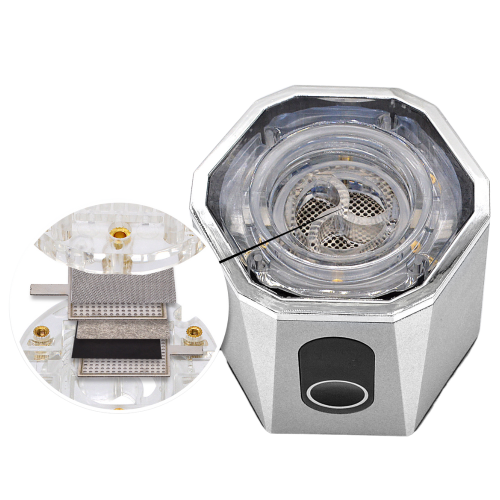

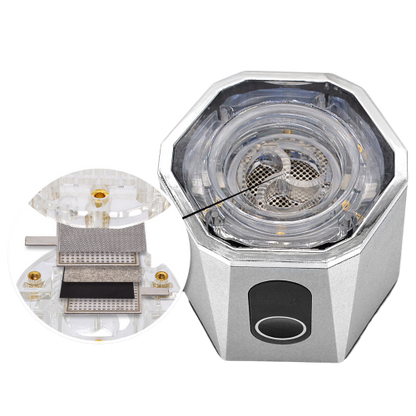

✔ Uses PEM Dual Chamber NANO Technology with SPE.
✔ 5-minute and 10-minute cycles.
✔ Well-sealed for no water leakage.
✔ Ability to attach your own 1 or even 2-liter 30mm plastic bottles. Get up to 3.5+ppm when 30mm 330ml, 500ml, and 1000ml shop-purchased water bottles are attached.
230ml BPA-free Tritan container.
✔ Made with food grade Clear BPA free plastics, heat-resistant so you can pour hot water or room temperature water into it. We suggest that the water temperature should not be over 60℃.

Body Material: Food Grade Polycarbonate (PC)
Working Cycle Time: 5 mins (single cycle) or 10 mins (double-cycle)
Battery Type: Lithium Polymer Battery
Voltage Inputs: 5V==-1A
Electrodes: Platinum Titanium
Interlayer: Proton Exchange Membrane (PEM)
Capacity: 210ml
Bottle Dimension: 65mm Width, 200mm Height

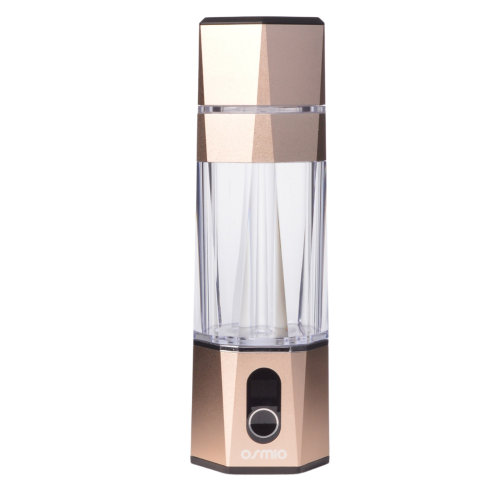

SKU: O2459-GOLD
EAN-13: 9508945692867

Please do not use FAST CHARGING USBs or high Voltage Charging, here is why:

Voltage Sensitivity: Osmio Hydrogen Bottles are designed to charge with standard 5V USB power (usually 5V 1A or 5V 2A). Fast chargers often output higher voltages (9V, 12V, or more), which can damage the electronics inside the bottle.

No Charging Smart Control: The bottles typically do not have circuitry to negotiate or regulate voltage from fast-charging ports, unlike modern phones or laptops.

Risk of Permanent Damage: Using a fast charger might overheat or burn out the circuit board, render the hydrogen generation function inoperable, or void the warranty.

Recommended Charging Method:
Use the original USB cable and standard 5V 1A (or 2A max) USB charger — like the type used for basic mobile phones.

Avoid high-wattage chargers or those labelled with “PD” (Power Delivery) or “QC” (Quick Charge).

If using a power bank, make sure it outputs only 5V, not variable fast-charging voltages.

Battery management:

A charge cycle begins when a battery is connected to the charger output with the VDD pin voltage rising above the UVLO threshold voltage and a 1% resistor connected between the PROG pin and ground. If the BAT pin voltage is lower than VTRKL, the charger enters a trickle charge mode. In this mode, WB6058B provides about 1/10 of the set charging current to increase the battery voltage to a safe voltage to achieve full current charging. When the BAT pin voltage rises above VTRKL, the charger enters constant current mode, providing a constant charging current to the battery. When the BAT pin voltage reaches the final float voltage VFLOAT, WB6058B enters constant voltage mode and the charging current begins to decrease. When the charging current drops to 1/10 of the set value, the charging cycle ends.

Charging automatic restart:
Once the charge cycle is terminated, the WB6058B uses a comparator with a 1.8ms filter time (TECHARGE) to continuously monitor the voltage on the BAT pin. When the battery voltage drops below 4.05V (roughly corresponding to 80% to 90% of battery capacity), the charging cycle begins again. This ensures that the battery is maintained at (or close to) a full state of charge and eliminates the need for periodic charge cycle initiation.
