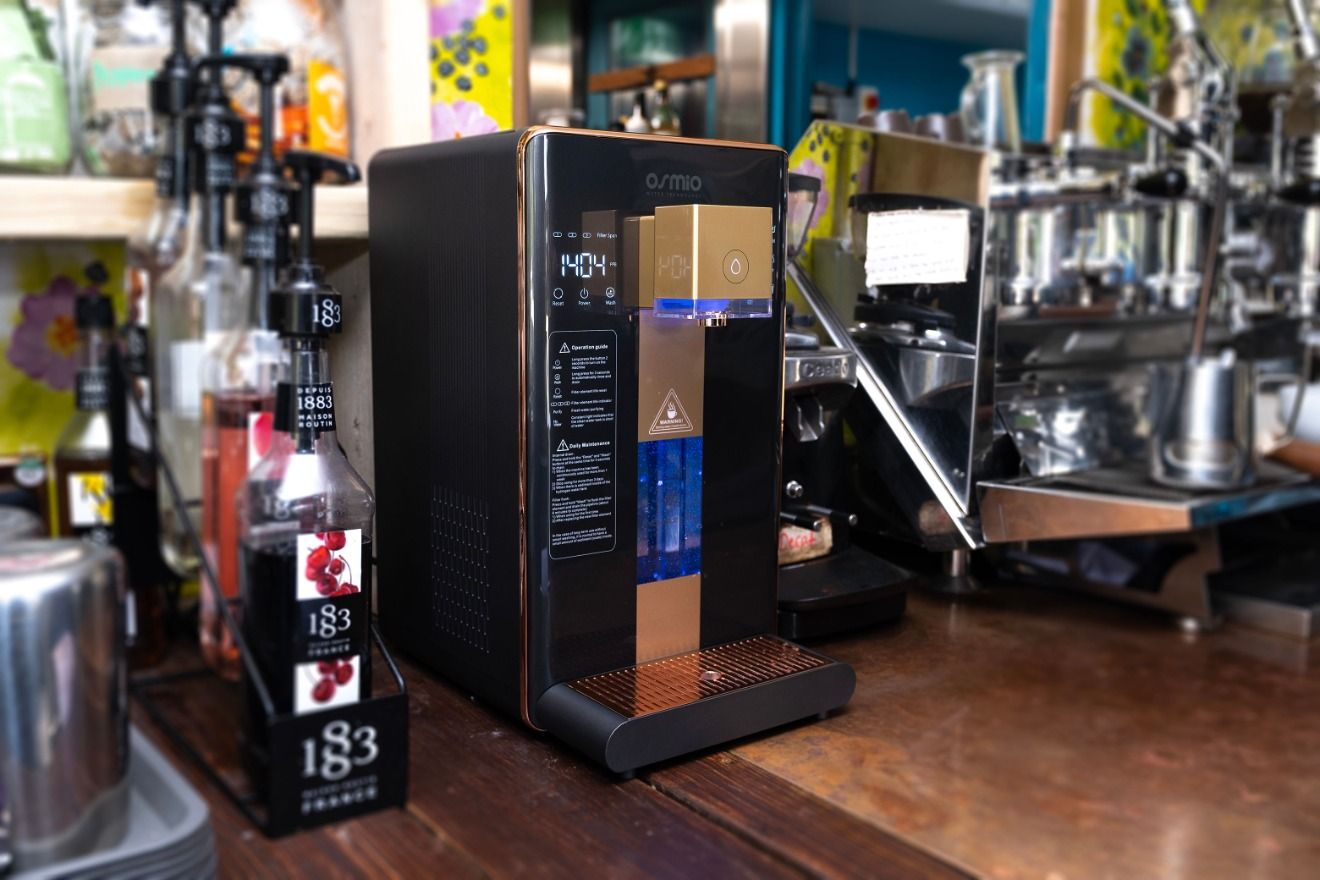

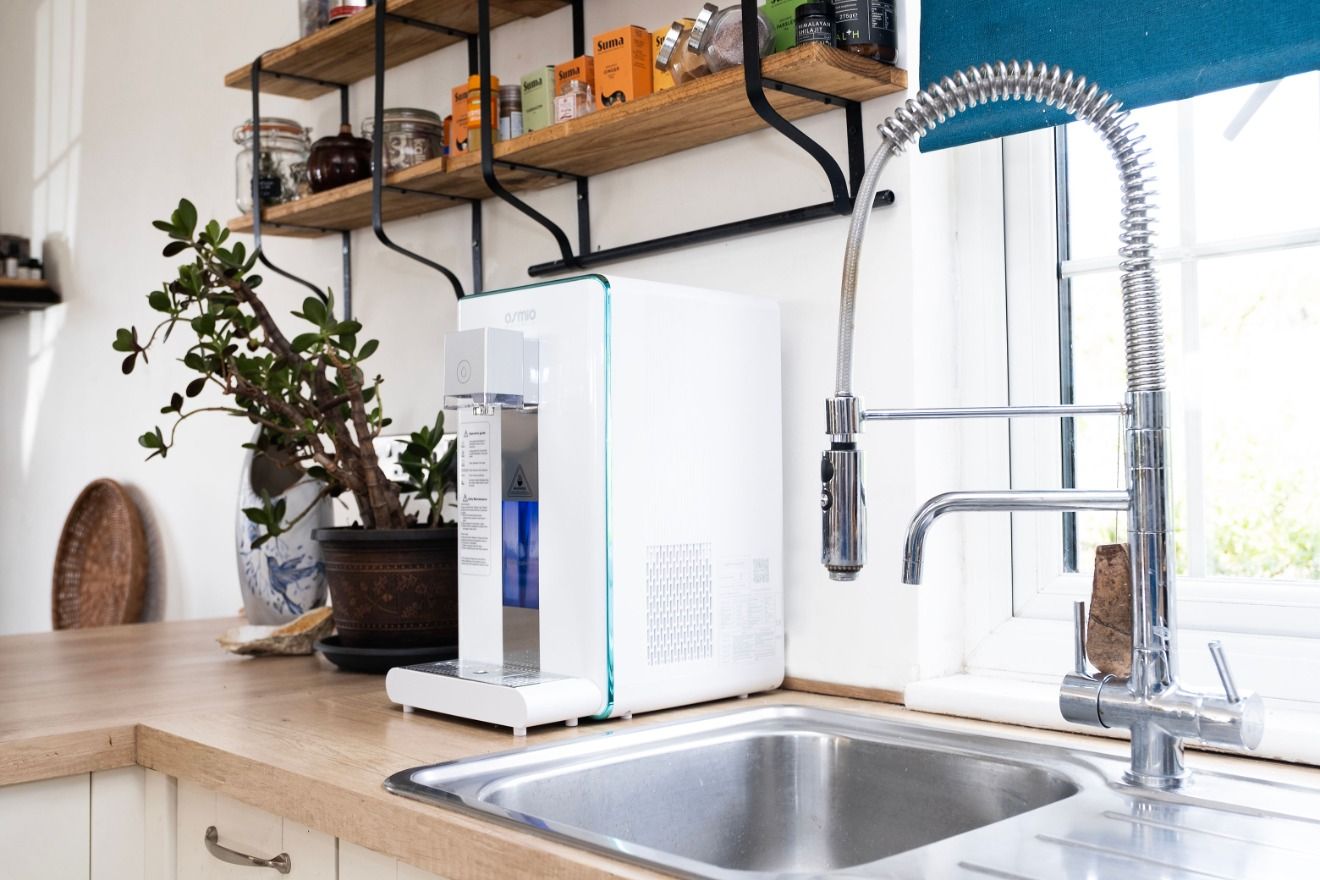

Osmio Fusion 3.0 Installed Hydrogen Reverse Osmosis System

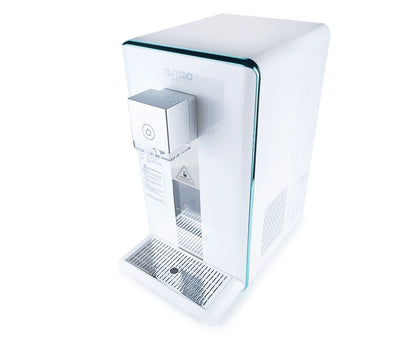

Osmio Fusion 3.0 Installed Hydrogen Reverse Osmosis System is a next-generation direct-feed reverse osmosis filtration system, delivering hot, chilled, and molecular hydrogen water for healthier homes and workplaces. It provides purified, great-tasting water enriched with dissolved molecular hydrogen, using advanced multi-stage filtration and a PEM membrane hydrogen generator. The compact design connects directly to your mains supply, eliminating the need for a tank, and offers instant access to clean, antioxidant-rich water at the touch of a button.

The Osmio Fusion 3.0 is a state-of-the-art, direct-feed reverse osmosis water system that brings a new level of health, convenience, and performance to your home or workplace. Combining hot, chilled, and molecular hydrogen water in one sleek unit, it delivers purified, refreshing, and antioxidant-rich water on demand — without the need for bulky storage tanks.

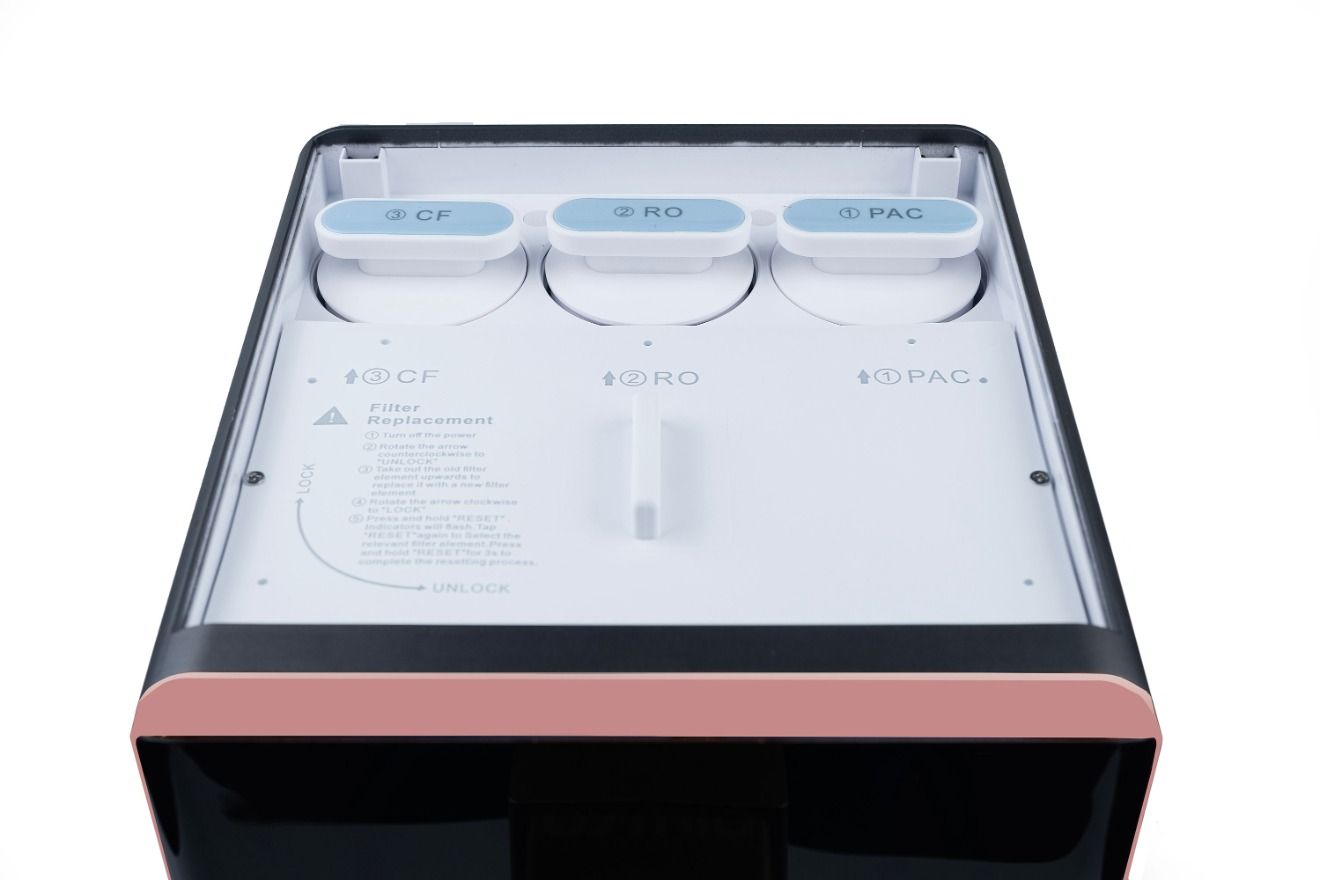

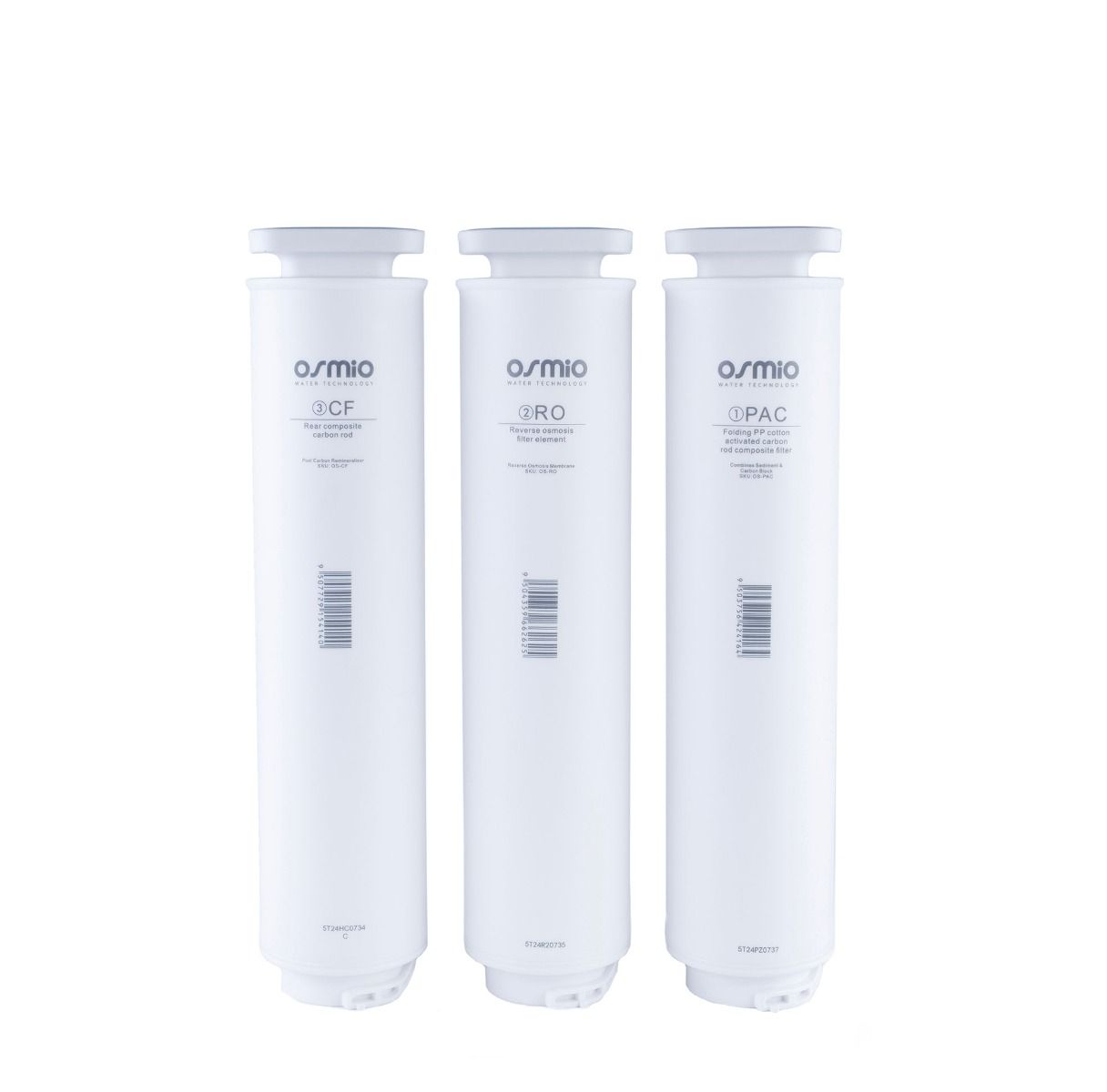

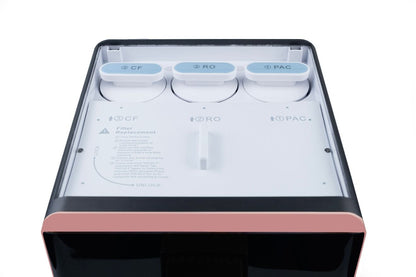

At the heart of the Fusion 3.0 is a multi-stage reverse osmosis filtration system, designed to remove impurities such as chlorine, fluoride, heavy metals, pesticides, and microplastics, ensuring every glass is clean and great-tasting. Integrated within the system is a PEM membrane hydrogen generator, which infuses your water with dissolved molecular hydrogen — a powerful antioxidant known to help reduce oxidative stress and support overall wellness.

The direct-feed design means the Fusion 3.0 connects straight to your mains water supply, offering a continuous flow of pure water while eliminating the hassle of refilling tanks. With dedicated outlets for hot, chilled, and hydrogen-rich water, the system adapts seamlessly to your lifestyle, whether you’re making tea or coffee, enjoying a refreshing cold drink, or boosting your hydration with hydrogen-enriched water.

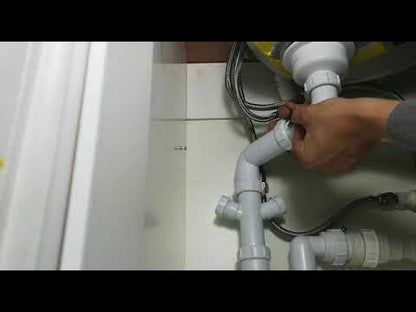

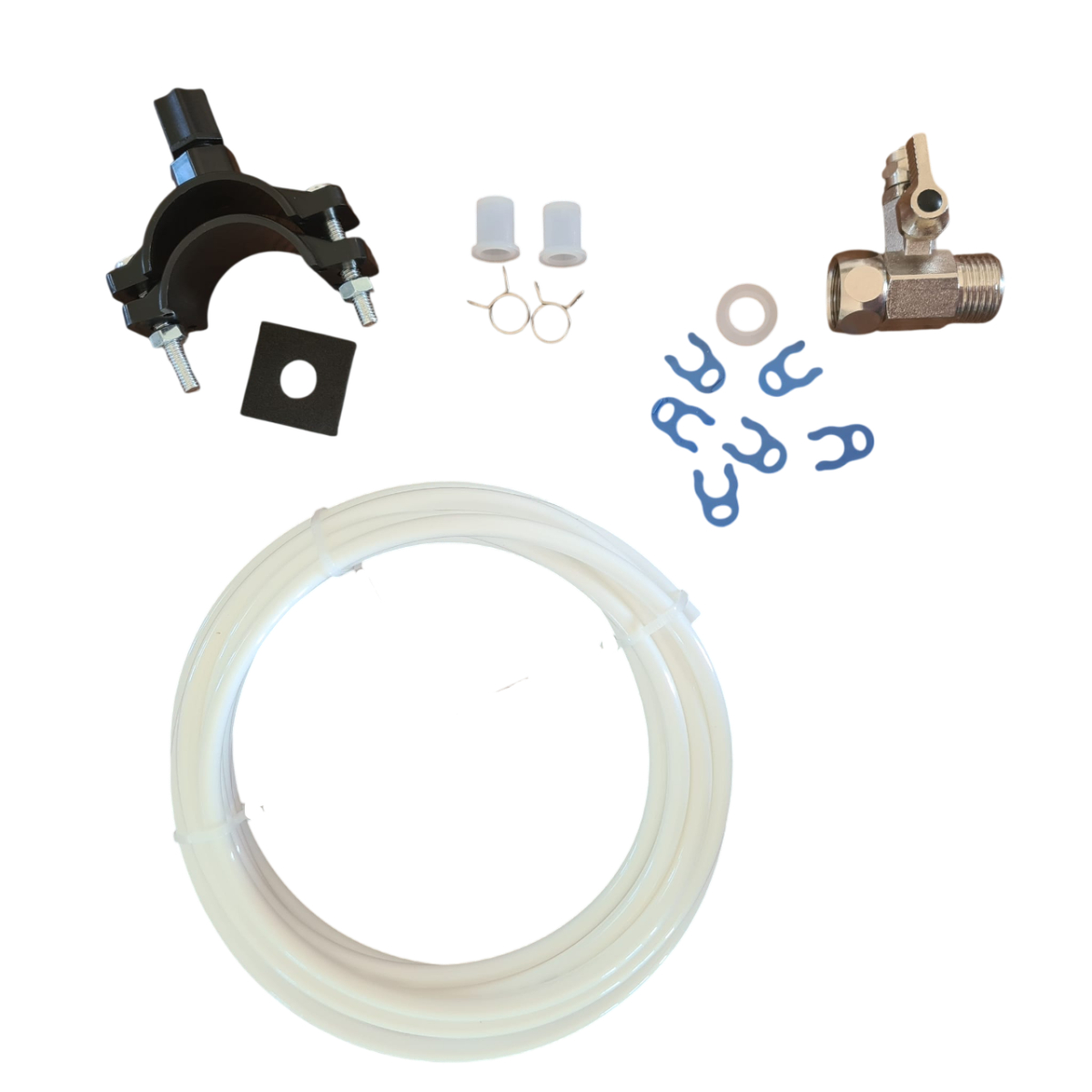

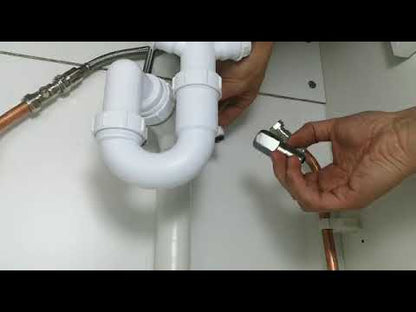

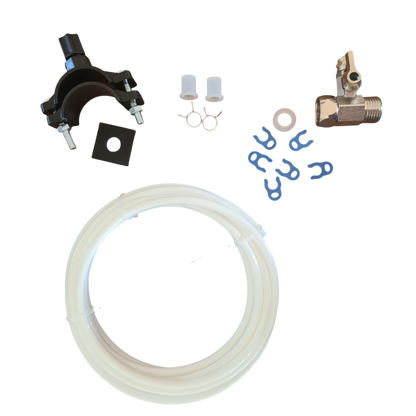

For convenience, the Fusion 3.0 is supplied with a complete fitting kit, making installation straightforward for any competent DIYer, local handyman, or plumber. Its compact footprint, modern design, and intuitive controls make it a stylish yet practical addition to any kitchen, office, or wellness space.

Built with both health and sustainability in mind, the Osmio Fusion 3.0 reduces reliance on bottled water, lowering plastic waste and environmental impact.

What’s New Compared to the Fusion 2.0

Hydrogen-enriched water: The Fusion 3.0 adds a PEM membrane hydrogen generator, delivering antioxidant-rich molecular hydrogen water - not available in the Fusion 2.0.

Chilled water function: Enjoy instant cold, purified water - another feature unique to the Fusion 3.0.

Greater versatility: Fusion 2.0 provides hot and ambient purified water only, while Fusion 3.0 offers hot, chilled, and hydrogen water.

Larger capacity, direct-feed design: Fusion 3.0 is designed for higher performance and broader applications, while the Fusion 2.0 is a smaller, simpler unit ideal for more compact spaces.

With the Osmio Fusion 3.0, you’re not just getting filtered water - you’re upgrading to healthier hydration, advanced features, and unmatched convenience.

Technical Parameters
Power Chord Length: 160cm
Rated voltage : 220V~
Rated frequency : 50Hz
Rated power: 2200W
Rated heating power : 2100W
Rated cooling power : 68W - chilled water cannot be dispensed continually but rather a glass by glass. The system will display "PREP" and the compressor go into a cooling cycle.

Electrical power consumption: 0.1kW/24h
Idle (Hydrogen Production OFF) : 0.010 kWh
Idle (Hydrogen Production ON) : 0.018 kWh
RO Pump (Filtering) : 0.039 kWh
Chiller (Fan Running) : 0.071 kWh
Hot Water : 2.01 kWh

Water heating capacity : 18L/h(>90°C)
Water production flow : 30L/h
Working pressure : 0.4~0.6MPa
Applicable water source : Mains or Private Supply Meeting UK Standards
Applicable water temperature : 5-38°C
Net weight : 9.6 kg

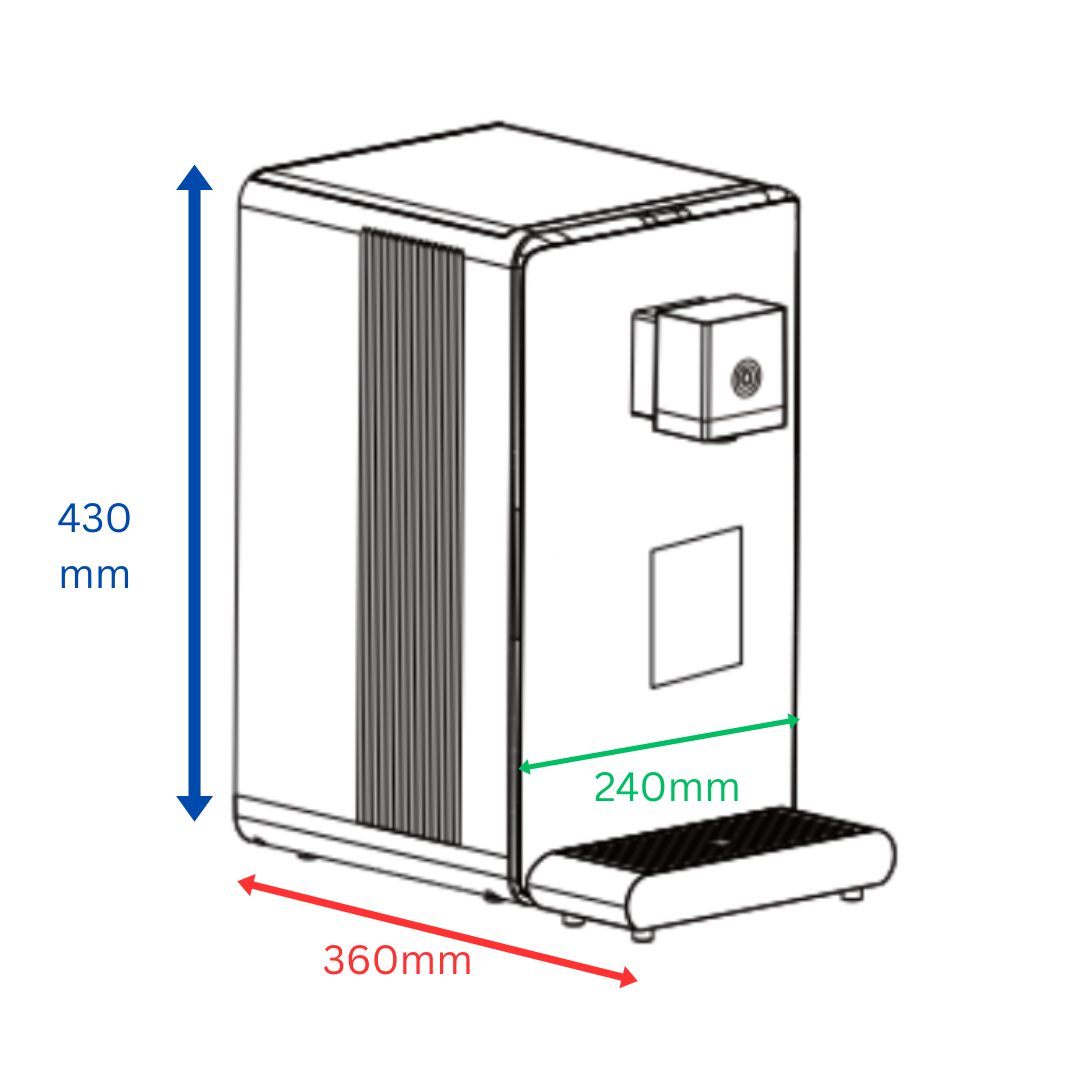

Dimensions: 360x240x430mm

EU/UK Declaration of Conformity

Product: Osmio Fusion 3.0 Hydrogen Reverse Osmosis System

We hereby declare that the product listed above complies with the essential requirements of the following directives and standards:

Electromagnetic Compatibility (EMC) Directive 2014/30/EU

Low Voltage Directive (LVD) 2014/35/EU

RoHS Directive 2011/65/EU (Restriction of Hazardous Substances)

UK Statutory Requirements for Electrical Equipment (UKCA mark)

Standards Applied:

EN 60335-1:2012 + A11:2014 (Safety of household appliances)

EN 60335-2-15:2016 (Particular requirements for water heaters)

EN 55014-1:2017 (EMC – emissions)

EN 55014-2:2015 (EMC – immunity)

Filter Parameter Bacteria, E-coli, Chlorine, Sediments, Nitrates, Fluoride, Limescale, Dissolved Solids (TDS), Hormones, Pharmaceuticals, Heavy Metals
